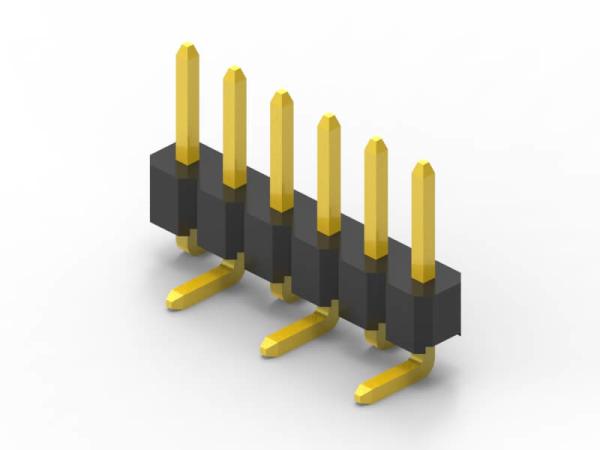

Reverse Feet SMD Type Male Pin Header Connector Single Row 6Pins

What is a PCB Connector?

Printed Circuit Board connectors are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.

PCB Connector orientations

The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:

• Parallel or mezzanine – both connectors are vertical orientation;
• 90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;
• 180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.

Other names for PCB Connectors

PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.

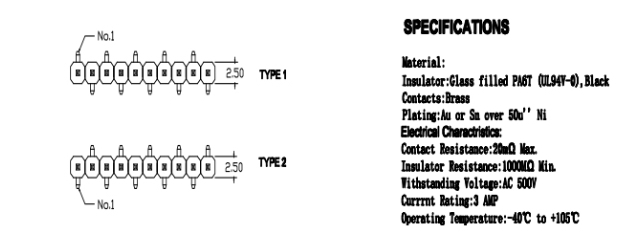

Specifications:

Why Choose CNJWY:

1. 20pcs free samples, For repeat order customer, We'll provide more than 20pcs samples for prototype project if necessary.

2. We value our customers’ trust in sourcing for the most suitable components for their requirements

3. Our aim is make sourcing connector easy for you

4. CONNJWY has come a long way over the years in delivering what we promise and is proud of what we have achieved so far.

5. Your one-stop source for components solutions.

Product Application:

Male pin header widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team

ShenZhen CNJWY Electronics Co.,Ltd. was established in 1998, is based on mold research and development, injection molding,stamping, plating, assembly as one of the connector suppliers; professional production Pin Header Connector, Female Header Connector, Box Header Connector, Ejector Header Connector, IDC, short cap, round hole, Continental, FPC / FFC soft row, SATA, deck, USB, PLCC, board to board and Terminal Block Series; Program;

Products are widely used in: LCD, Drone,Robot,Computer motherboards, Digital cameras, Military sockets, Communications, Industrial control, Automotive electronics, Smart home appliances, Instrumentation, power meters, Solar equipment, Card readers, Cell phones, Cordless phones, Intercoms, Video phones , Program-controlled switches, Automotive systems, LCM / LED display blocks, Electronic toys, Medical equipment and Optoelectronic products and Liquid crystal displays, Telecommunications cards, Memory, LCD TVs, and many other areas, for domestic and foreign customers with reliable connectors.

With the principle of " people-oriented, honesty and trustworthiness, excellence and common development ", the company is based on the principle of " professional quality, rapid response, special service and sustainable development " as well, relies on the good quality and reasonable price to base itself on the domestic and abroad markets. Therefore a lot of domestic and foreign customers establish long-term and stable relationships of cooperation, which proved our integrity of the style and excellent quality.

Sincerely welcome customers home and abroad to discuss cooperations! Sincerely thanks to our customers for more than 10 years of cooperation and guidance, we will be strict in management of the production of science and technology, good quality, as always, to serve you
