Long Feet Male Pin Header Connector Bending Through Hole Black Insulator

What is a PCB Connector?

Printed Circuit Board connectors are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.

PCB Connector orientations

The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90-degree increments:

• Parallel or mezzanine – both connectors are vertical orientation;
• 90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;
• 180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.

Other names for PCB Connectors

PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.

Why Choose CNJWY

Automatic Production

More than 80% of CNJWY products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt to the development of the times, so that we could provide the most qualified products to our clients.

Delivery on time

Every customer is distinctive, so we have to make every delivery in time to cherish every chance given by our customers.

Make Value

Business is like a long journey. The value is the views on the way. Making value for the customers is to make value for the company, as mutual win-win is our goal.

Instant Response

Everybody will get in trouble now and then, same as working time. Instant response might be possible to solve the problems customers meet in time.

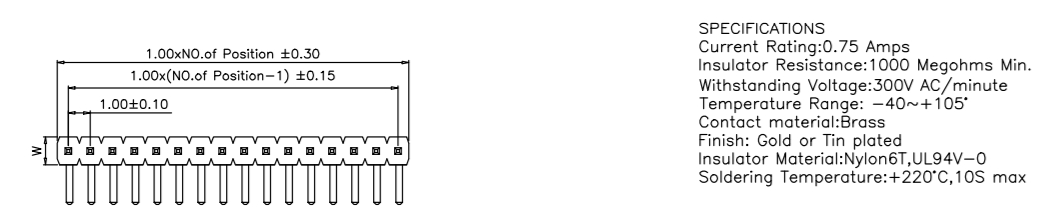

Specifications:

1. Pitch:1.00mm(0.039'')

2. Connector Name: PCB Connector/Pin Header

3. Insulation Material:PA6T UL 94-V0

4. Contact Material: Copper Alloy

5. Mounting Type: Through Hole

6. Number of Row: Single

7. Contact Finish:Gold Over Nickel

8. Termination: Solder

9. Color:Black

10. Current Rating:1.0 AMP

11. Withstand Voltage:500V AC/DC

12. Contact Resistance:20mΩ Max

13. Contact Shape: Square Pin

14. Pin Length: Customization

15. Pin Available:2 Pins to 80 Pins

Product Application:

Male pin header widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation, for more detail you can directly contact our sales team.
