    2-24P Poles Terminal Block Connector PCB Barrier 13.0mm Pitch 1*03P M4 Steel Screw

    Ask Lasest Price
    Brand Name : CNJWY
    Model Number : CBT-00-13.0
    Certification : UL.CE
    Payment Terms : T/T, Western Union
    Supply Ability : 10000000
    Delivery Time : 1week
    • Product Details
    • Company Profile

    2-24P Poles Terminal Block Connector PCB Barrier 13.0mm Pitch 1*03P M4 Steel Screw

    European Standard PCB Barrier Terminal Block Connector 13.0mm Pitch 1*03P PBT H=25.8mm


    Product Name: PCB Barrier Terminal Block


    PCB Barrier Terminal Block Connector Application:


    PCB Barrier Terminal Block Connector Is Mainly used in communications, lighting, security and etc.. And the application of industry pluggable terminal is the main pan, such as frequency conversion, riot, numerical control panel, access controller, sensor, PLC, instrumentation, power, servo drive, the common requirements of these applications for pluggable terminal industry are: insertion force should be smooth, contact resistance to be small, must be able to meet the certain life and fatigue, so higher requirements for the metal shrapnel material. This requires that product designers have certain experience in structure and material. For the fence type terminal applications: power supply, relay (especially double terminal), frequency

    converter, the elevator industry (less), air conditioning.

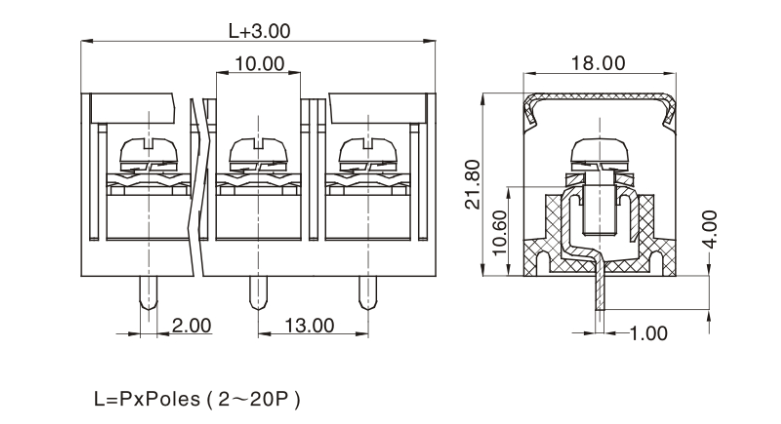

    PCB Barrier Terminal Block Connector TECHNICAL DATA:


    Pitch13.0mm
    Poles2-24P
    ScrewM4 Steel, Zinc plated
    Pin headerBrass, Tin plated
    Wire cageBrass Ni plated
    HousingPBT, UL94, V-0
    Rated voltage300V(UL)
    Rated current50A
    Withstanding voltageAC1250V/1Min
    Wire range22-8AWG
    Temperature range-40°C~+105°C
    Screw Torque13 lbf.in
