Waterproof High Voltage Terminal Block , Pluggable Terminal Block Wire Connectors

ShenZhen JWY Electronic Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Waterproof High Voltage Terminal Block , Pluggable Terminal Block Wire Connectors from wholesalers

    Buy cheap Waterproof High Voltage Terminal Block , Pluggable Terminal Block Wire Connectors from wholesalers
    • Buy cheap Waterproof High Voltage Terminal Block , Pluggable Terminal Block Wire Connectors from wholesalers

    Waterproof High Voltage Terminal Block , Pluggable Terminal Block Wire Connectors

    Ask Lasest Price
    Brand Name : CNJWY
    Model Number : CDT4
    Certification : UL.CE
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 1000000
    Delivery Time : 1week
    • Product Details
    • Company Profile

    Waterproof High Voltage Terminal Block , Pluggable Terminal Block Wire Connectors

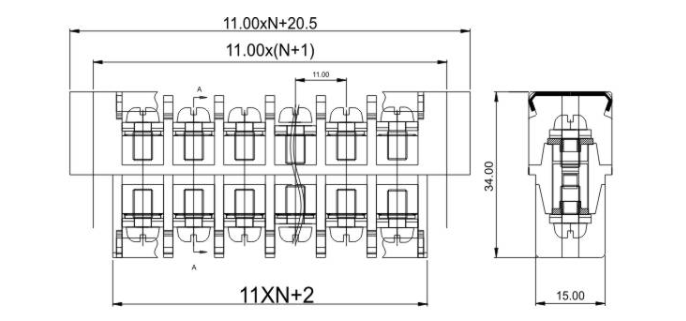

    CDT4 600V 30A 11.0mm Pitch Barrier Terminal Block H=34.0mm,wire range 4mm² PBT 1*06P


    Barrier Terminal Block Introduction


    Barrier Terminal Block is widely used in industrial control system, power system relay, inverter, PLC and other industries. There are many modes of connection, such as earring lines, Y type lines,multi-strand shard lines and so on. Most of them pressing the wire on the terminal with the screw, which requires better torque of the screw and also better insulating PBT material. Its main feature is to make multiple combinations in any pins, fixed in the cabinet or controlling the board via the groove. It also has the best mechanical and electrical properties, which is able to achieve diverse inline methods, such as one side to the other side,multi-outlines and so on. It is also available to fit many attachments like the label, protective cover, shorting tab, etc.


    Barrier Terminal Block Technical Data:



    Center Space11.0mm
    Wire Range4mm²(Max)
    Screw Torque10lbf.in
    Rated Current600V,30A
    Surge Voltage6000V
    Insulation BodyPBT,UL94,V-0
    Screw MaterialM4,Steel
    Terminal BodyBRASS
    Temperature-40℃~120℃
