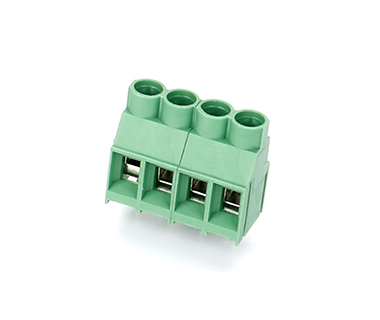

    30-10AWG Electrical Terminal Block Connector CET5 9.52mm Pitch 1*04P Green

    Ask Lasest Price
    Brand Name : CNJWY
    Model Number : CET50-00-508
    Certification : UL.CE
    Payment Terms : T/T, Western Union
    Supply Ability : 10000000
    Delivery Time : 1week
    • Product Details
    • Company Profile

    30-10AWG Electrical Terminal Block Connector CET5 9.52mm Pitch 1*04P Green

    Product Name: Electrical Terminal Block Connector


    1. Electrical Terminal Block Connector features: switching high-frequency high voltage insulation life long seismic


    2. Electrical Terminal Block Connector Application: Mainly used in lighting, security and etc.. And the application of industry pluggable terminal is the main pan, such as frequency conversion, riot, numerical control panel, access controller, sensor, PLC, instrumentation, power, servo drive, the common requirements of these applications for pluggable terminal industry are: insertion force should be smooth, contact resistance to be small, must be able to meet the certain life and fatigue, so higher requirements for the metal shrapnel material. This requires that product designers have certain experience in structure and material. For the fence type terminal applications: power supply, relay (especially double terminal), frequency

    converter, the elevator industry (less), air conditioning.


    TECHNICAL DATA:

    Center Space9.52mm
    Rated Current600V 30A
    Surge Voltage4000V
    Insulation BodyPA66 UL94, V-0
    Terminal BodyBrass
    Screw Torque5 lbf.in
    Temperature-40℃~105℃
    Wire Range30-10AWG


    Quality 30-10AWG Electrical Terminal Block Connector CET5 9.52mm Pitch 1*04P Green for sale
