Height 2.0mm PA6T SMT Dislocation Pin 1.27MM Female Header

ShenZhen JWY Electronic Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Height 2.0mm PA6T SMT Dislocation Pin 1.27MM Female Header from wholesalers

    Buy cheap Height 2.0mm PA6T SMT Dislocation Pin 1.27MM Female Header from wholesalers
    • Buy cheap Height 2.0mm PA6T SMT Dislocation Pin 1.27MM Female Header from wholesalers
    • Buy cheap Height 2.0mm PA6T SMT Dislocation Pin 1.27MM Female Header from wholesalers

    Height 2.0mm PA6T SMT Dislocation Pin 1.27MM Female Header

    Ask Lasest Price
    Brand Name : CNJWY
    Model Number : FH-XXXXXXXX
    Certification : UL/ROSH/REACH/TS16949
    Price : 0.02USD to 0.5USD
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 10000000PCS/Month
    Delivery Time : 7 to 10days
    • Product Details
    • Company Profile

    Height 2.0mm PA6T SMT Dislocation Pin 1.27MM Female Header

    1.27MM Female Header 1*XXP SMT Type Dislocation Pin Black Insulation Height=2.0mm Gold Flash


    What's the Female Header


    1. Female header is called PCB Connector. Based on different designs for PCB, they choose different pitch connectors for signal transmission
    2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team.
    3. Generally, Female headers with suited pin headers are used to finish created modules in electronic industry.
    4. Regarding Female header electrical and mechanical properties, same pitch has the same function, which we have shown clearly in our data sheet.
    5. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape, which is a more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability

    How to Order

    1. Send us a inquiry online, tell me what's the original part(Samtec.Harwin and so on) you used before. We will advise you our equivalent part.
    2. Drop us a calling,You can find our more details contact information in our website
    3. Contact us via WhatsApp and Skype, We are 24hours online service.(86-18688756107 and 86-1587414406​)
    4. Email us,We will reply your inquiry within 12hours

    Technical


    Specification:

    Current Rating1.0 AMP
    Contact Resistance20 mΩ Max
    Withstand Voltage250V AC/DC
    Insulation Resistance1000MΩ Min
    Operation Temperature-40℃ to 105℃
    Contact MaterialCoppy Alloy
    Products NameFemale Header Connector
    Pitch1.27mm(0.079'')
    Mounting TypeSMT
    Contact PlatingAu over Ni
    Insulator MaterialPA6T+30%GF(UL94V-0)
    TerminationSolder
    insertion Force2N Max
    Withdrawal Force0.3N Min
    Durability300 Mating Cycles
    Solder Temperature260℃ for 10 seconds
    PackingTube/Reel
    ColorBlack

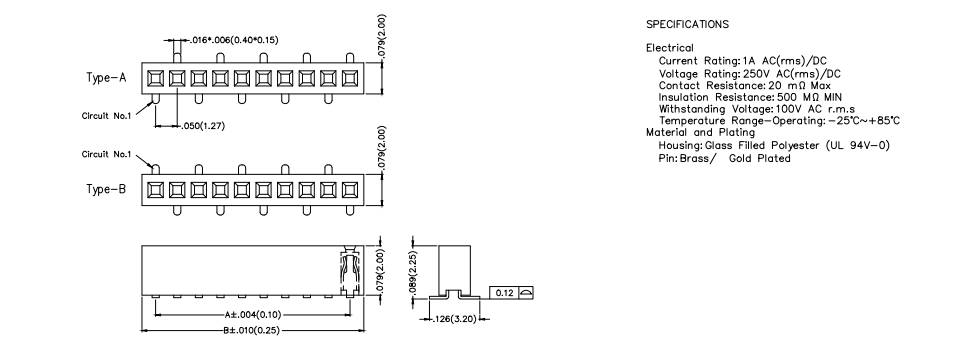

    Drawing
